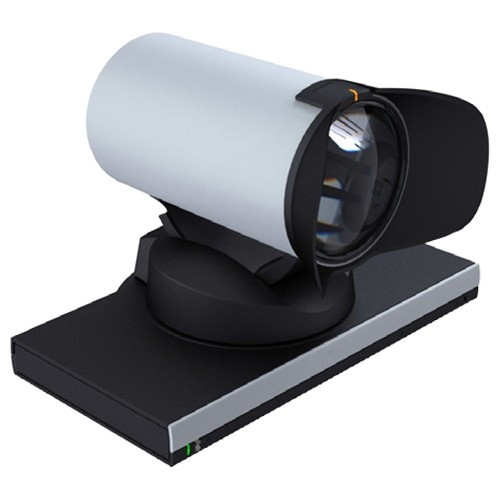

Cisco CTS-PHD1080P12XS= PrecisionHD TelePresence Camera
Cisco CTS-PHD1080P12XS= PrecisionHD TelePresence Camera
Cisco CTS-PHD1080P12XS= PrecisionHD TelePresence Camera - view 2
Product images are provided for reference and may not represent the exact model, configuration, or included components.
Rachel Adams, Senior Specialist

Talk to Rachel

200+ hrs training • U.S - based

Senior Specialist • 888-272-5560

Message Call

Highlights

Camera Type
1/3" CMOS
Optical Zoom
12x
Field of View
72° Horizontal / 43.5° Vertical
Max Resolution
1920 x 1080 @ 60fps
Connectivity
1 x LAN/Ethernet (RJ-45) 10/100/1000 Mbit
Power
Auto-sensing 100-240 VAC
Dimensions
13.8" L x 1.2" H x 5" D
Weight
4 lb / 1.8 kg
Description

Cisco CTS-PHD1080P12XS=

The Cisco CTS-PHD1080P12XS= PrecisionHD is a PTZ video conferencing camera with a 12x optical zoom making it ideal for medium to large sized rooms.

Cisco PrecisionHD Camera Features:

  • HDMI video out provides 1080p60 resolution.
  • HD-SDI video out provides 1080p30 resolution.
  • Both connections can be used simultaneously.
  • Far-end camera control of PTZ functions.
  • 43.5 vertical field of view and 72 horizontal field of view.
  • Magnification through 12x optical zoom.
  • -90° to 90° pan and -25° to 15° tilt.

Cisco PrecisionHD Camera Package Contents:

  • Cisco TelePresence PrecisionHD camera 1080p12x
Expert Analysis
Specifications
Camera Type: 1/3" CMOS
Optical Zoom: 12x
Pan: +/- 90°
Tilt: +15%-25°
Horizontal Field of View: 72°
Vertical Field of View: 43.5°
Focus Distance: 0.3m-infinity
Resolution: 1920 x 1080 pixels progressive @ 60fps
Supported Resolutions: 1920 x 1080@60 fps (HDMI only), 1920 x 1080@50 fps (HDMI only), 1920 x 1080@30 fps, 1920 x 1080@25 fps, 1280 x 720@60 fps, 1280 x 720@50 fps, 1280 x 720@30 fps, 1280 x 720@25 fps
Focus Control: Automatic or manual
White Balance Control: Automatic or manual
Far-end Camera Control: Supported
Mounting: Upside-down mounting with automatic flipping of picture
System Management: Support for Cisco TelePresence Management Suite, SNMP, Telnet, SSH, XML, SOAP
Remote Software Upload: Web server, SCP, HTTP, HTTPS
Directory Services: Local directories (My Contacts), Corporate Directory (LDAP and H.350)
Power Supply: Auto-sensing, 100-240 VAC, 50/60 Hz
Max Power Consumption: 75 watts (codec and main camera)
Operating Temperature: 0°C to 35°C (32°F to 95°F)
Operating Humidity: 10% to 90% Relative Humidity (RH)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Humidity: 10-90% RH (non-condensing)
Dimensions (Codec C20: Length: 13.8"/35.0 cm, Height: 1.2"/3.0 cm, Depth: 5"/12.7 cm
Weight (Codec C20: 4 lb/1.8 kg
Regulatory Compliance: Directive 2006/95/EC, Directive 2004/108/EC, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07, FCC15B Class A
Snippet: The Cisco CTS-PHD1080P12XS= is a PrecisionHD TelePresence Camera with 12x optical zoom, 72° horizontal field of view, and 1080p resolution at 60fps.
Q&A
Additional info
Icon Loading
Reviews

Customer reviews

No reviews yet — be the first to share how this product worked for your setup.

Write a Review

Product Video
Have Questions?

Cisco CTS-PHD1080P12XS= PrecisionHD TelePresence Camera

$5,999.99
Add to Cart
