Camera Sensor:
2-megapixel CMOS
Optical Zoom:
16X
Pan Range:
±100°
Tilt Range:
±25°
Horizontal Field of View:
61°
Vertical Field of View:
35°
Diagonal Field of View:
67°
People Video Resolution:
HD1080p (1920 x 1080) at 30fps
Content Video Resolution Supported:
WSXGA (1440 x 900), HD (1360 x 768), SXGA (1280 x 1024), SXGA (1280 x 960), WXGA (1280 x 800), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
Content Video Output Resolution:
HD720p (1280 x 720) up to 30fps
Video Standards:
H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
Dual Video Streams:
H.239
Content Sharing:
BFCP
Audio Standards:
G.711, G.722, G.728, G.722.1, G.722.1C
Audio Features:
Automatic gain control (AGC), Advanced noise reduction, Acoustic echo cancellation (AEC)
Microphone Input:
EVC microphone daisy chain up to 4
Line-in Audio Input:
3.5 mm
Audio Output:
Digital audio on HDMI, Line-out (3.5 mm)
Network Interface:
RJ45 LAN (10/100/1000)
Network Protocols:
H.323, SIP, SIP TLS
Bandwidth:
64Kbps~4Mbps
Security:
AES (128-bit) encryption, Password protection
Management:
Web Management Tool, API support via Telnet
Meeting Recording:
Save directly to USB flash drive
Dual Monitor Support:
Yes
Snippet:

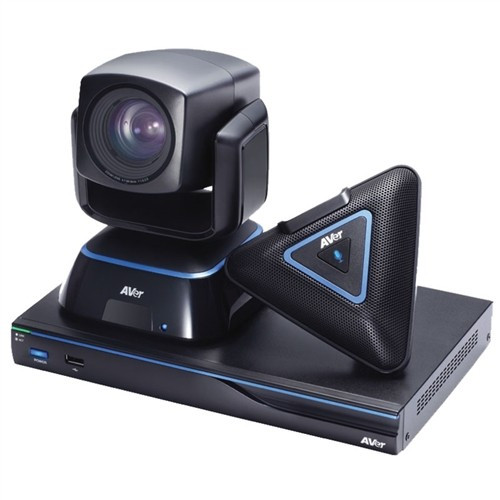

The Aver EVC130P is a video conferencing system featuring a PTZ eCam with 16X optical zoom and HD1080p resolution for clear communication.
