Highlights

Display
14-inch HD (1920x1080) Touchscreen
Camera
8MP, 1080p30, 63° FOV
Audio
Full-band, CD quality
Connectivity
Gigabit Ethernet, USB, HDMI
Processor
1.5 GHz Dual-Core
Dimensions
14.84 x 13.91 x 2.45 in.
Weight
7.5 lb
Included
Power Supply, Ethernet Cable, Cleaning Cloth
Description

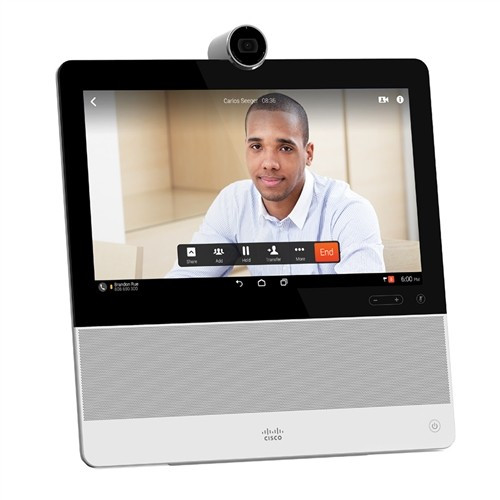

Cisco DX70 Desktop Telepresence System - CP-DX70-W-K9

Transform Your Business Communication with Cisco DX70

The Cisco DX70 offers a comprehensive video conferencing and communication solution for business environments. It's an all-in-one platform that combines high-quality video and audio capabilities with smart features for a seamless communication experience.

Key Features and Specifications:

  • Display: 14-inch, 16:9 backlit LCD with HD resolution (1920 x 1080 pixels).
  • Touchscreen Interface: Multi-touch/capacitive for intuitive navigation.
  • Camera: HD 1080p front camera with 8MP resolution, providing a field of view of 63° horizontal and 38° vertical.
  • Video and Audio Standards: Supports H.264, AVC for video; G.711, G.729, iLBC, G.722, AAC for audio.
  • Microphone and Speaker: Noise reduction and echo cancellation features, microphone frequency range of 70 Hz to 20 kHz, and speaker frequency range of 100 Hz to 20 kHz.
  • Operating System and Hardware: Runs on Android 4.1.1 with a TI OMAP 4470 1.5 GHz processor, 8 GB eMMC flash memory, and 2 GB RAM.
  • Connectivity: Compatible with Wi-Fi standards, supporting Bluetooth accessories and downloadable applications.

Package Contents:

  • Cisco DX70 Unit
  • Necessary Cables and Accessories

Compatibility and Use Cases:

  • Ideal for various business communication needs such as meetings, interviews, and collaborative projects.
  • Compatible with standard and Cisco-enabled video conferencing solutions.
  • Allows content sharing from Windows or Mac computers.
  • Can be customized and configured on the Android platform for easy access to necessary applications.

Warranty and Support:

  • Comes with a 1-year warranty for peace of mind and reliability.

The Cisco DX70 is designed to enhance the way businesses communicate, offering a flexible and high-quality video conferencing solution. Its intuitive touchscreen, powerful video and audio standards, and Android-based system make it a top choice for organizations looking to improve their communication infrastructure.

Specifications
Display Size: 14-inch
Display Resolution: 1920 x 1080
Display Aspect Ratio: 16:9
Display Technology: AHVA
Display Contrast Ratio: 700:1 (typical)
Display Viewing Angle: +/–178 degrees (typical)
Display Response Time: 25 ms
Display Brightness: 300 cd/m2 (5 points average)
Touchscreen: 10-point multi touch
Camera Field of View (Horizontal: 63 degrees
Camera Field of View (Vertical: 38 degrees
Camera Resolution: 1080p30
Camera Aperture: F 2.2
Processor: TI OMAP 4470 1.5-GHz dual-core ARM Cortex-A9
Storage: 8-GB eMMC NAND flash memory
Memory: 2-GB RAM (LPDDR2 SDRAM)
HDMI Input: Type A port for PC or Mac video input
USB Ports: 3 x Type A (headsets/handset), 1 x Micro-B (serial)
Micro SD Card Slot: Up to 32 GB (Class 4 or later recommended)
Audio Jack: 1 x 3.5-mm analog headphone and headset
Ethernet: 10/100/1000BASE-T (RJ-45)
Dimensions (H x W x D: 14.84 x 13.91 x 2.45 in. (377.1 x 353.1 x 62.3 mm)
Weight: 7.5 lb (3.4 kg)
Power Rating: 3.5A at 12V maximum
Operating Temperature: 32 to 104°F (0 to 40°C)
Snippet: The Cisco DX70 is a 14-inch desktop telepresence system with an HD touchscreen, offering high-definition video and audio for collaboration.
