Camera Field of View:
112-degree horizontal (wide-angle), 70-degree horizontal (tele-lens)
Camera Resolution:
96 MP dual camera system
Microphone Type:
16-element beamforming microphone array
Microphone Pickup Range:
Optimized for up to 4 meters (13 ft)
Audio Output:
3-channel loudspeaker system
Video Output:
3x HDMI outputs up to 3840 x 2160 at 60 fps
Video Input:
1x HDMI input (up to 3840 x 2160 at 30 fps), 1x USB-C input (up to 3840 x 2160 at 30 fps)
Content Sharing Input:
Dual content sources (HDMI and USB-C)
Wireless Content Sharing:
Webex, Miracast, Apple AirPlay
Connectivity:
Ethernet (RJ-45) 10/100/1000 Mbps, Wi-Fi 802.11a/b/g/n/ac/ax, Bluetooth
PoE Ports:
2x Ethernet (RJ-45) 10/100/1000 Mbps PoE (802.3af) for AV over IP and audio equipment
USB Ports:
2x USB 2.0 type A, 1x USB-C passthrough
Power Consumption:
Average 20 W
Power Requirements:
100 to 240 VAC, 50/60 Hz
Dimensions (Main Unit:
37.8 in. (96 cm) W x 4.3 in. (11 cm) H x 3.5 in. (9 cm) D
Weight (Main Unit:
9.86 lb. (4.47 kg)
Operating Temperature:
0°C to 35°C (32°F to 104°F)
Storage Temperature:
-20°C to 60°C (-4°F to 140°F)
Software Compatibility:
RoomOS 11.5.1.x or later, Microsoft Teams Rooms on Android
Included Components:
Room Bar Pro unit, Mounting Kit, Ethernet cable (5m), HDMI cable (1.5m), Cisco Room Navigator for Table, Ethernet cable (8m), Power cord
Management:
Control Hub
Security:
HTTPS, SSH, SRTP, WPA3
Video Standards:
H.263, H.264, H265, AV1
Audio Standards:
G.711, G.722, G.722.1, G.729, AAC-LD, Opus
AI Features:
AI-enhanced video, intelligent framing, noise removal, speaker tracking
Snippet:

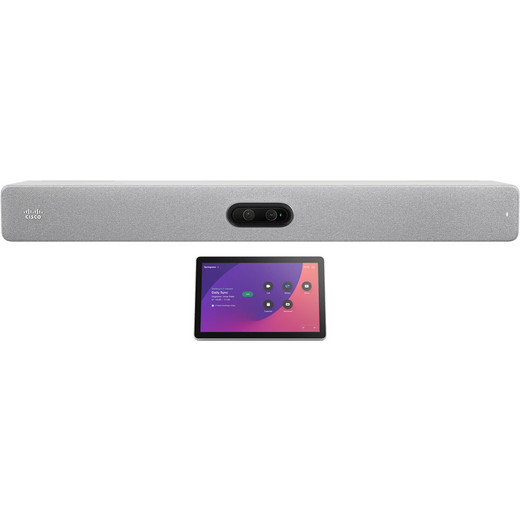

The Cisco Room Bar Pro is an AI-enhanced video collaboration bar for medium-sized meeting spaces, featuring dual cameras, advanced audio, and flexible connectivity for immersive video conferencing.
