Camera Sensor:
12 Megapixel Sony IMX477 Type 1/2.3 CMOS
Camera Field of View:
150° diagonal, 120° horizontal, 90° vertical
Camera Resolution:
HD 1080p @ 30 fps
Microphone Pickup Range:
15 ft (4.6 m)
Microphone Pickup Angle:
180° horizontal
Audio DSP:
Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control; full-duplex IEEE 1329 Type 1 compliant
Speaker Output:
20 W per channel
Speaker Frequency Response:
80 Hz to 20 kHz (±3 dB)
Touch Screen Size:
10.1 in. (257 mm) diagonal
Touch Screen Resolution:
1280 x 800 pixels
Touch Screen Connectivity:
10/100 Mbps Ethernet
Touch Screen Power:
PoE/PoE+ (IEEE 802.3at compliant)
UC Engine Processor:
Intel Core i5-8259U
UC Engine Content Ingest:
HDMI input via HDMI to USB 3.0 converter
UC Engine Display Output:
DisplayPort 1.2 via USB Type-C port, converted to HDMI
UC Engine Content Input Resolution:
HD 1080p @ 60 fps
UC Engine Display Output Resolution:
HD 1080p @ 60 fps
UC Engine Mounting:
Wall mount or attach to rear of display via VESA mount bolts
Soundbar Dimensions:
4.57 in. (117 mm) H x 43.60 in. (1108 mm) W x 3.90 in. (100 mm) D
Soundbar Weight:
Approximately 15 lb (6.8 kg)
Touch Screen Dimensions:
5.42 in. (138 mm) H x 10.23 in. (260 mm) W x 5.69 in. (145 mm) D
Touch Screen Weight:
41.2 oz (1166 g)
Included Components:
Smart soundbar & camera, 10.1 in. touch screen, UC Engine assembly, PoE injector, Ethernet cables
Snippet:

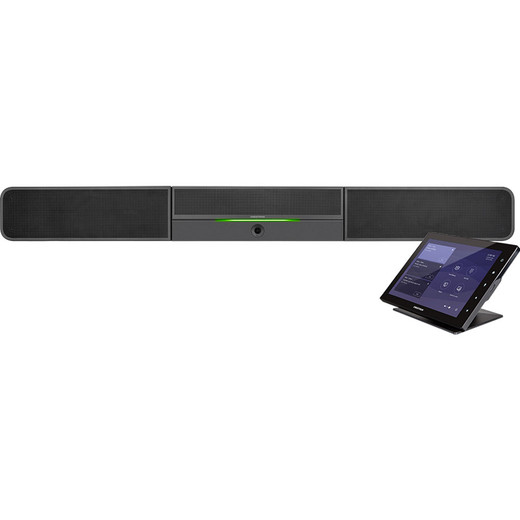

The Crestron Flex UC-B140-T is a Microsoft Teams video conferencing bundle featuring a smart soundbar with an ultra-wide camera and a 10.1" touch screen for seamless collaboration.
