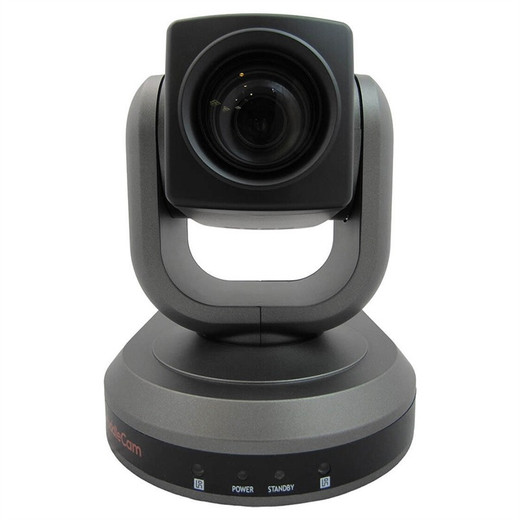

HuddleCamHD HC20X-GY-G2 20x USB Video Conferencing Camera
HuddleCamHD HC20X-GY-G2 20x USB Video Conferencing Camera
Product images are provided for reference and may not represent the exact model, configuration, or included components.
Rachel Adams, Senior Specialist

Talk to Rachel

200+ hrs training • U.S - based

Senior Specialist • 888-272-5560

Message Call

Highlights

Zoom
20x Optical, 12x Digital
Resolution
Up to 1080p at 30fps
Connectivity
USB 3.0
Field of View
58° Wide
Control
IR Remote, RS-232/485
Compatibility
Windows, Mac, Teams, Zoom, Skype
Warranty
2 Years
Description

HuddleCamHD 20x 1080p

HuddleCam provides an IR remote control to control the panning and tilting, and you can plug in external controls using a VISCA port. The camera supports 64 presets for painless set-up. HuddleCamHD includes a 2-year manufacturer warranty.

HuddleCamHD 20x 1080p Camera Features:

  • Plug-and-play camera for medium to large video conferencing spaces.
  • 1/2.8" CMOS 2.0 MP sensor records 1080p30, 720p30 video.
  • Certified Sony lens captures crystal-clear images.
  • 20x optical zoom plus 12x digital zoom to pick out everyone clearly.
  • Position it how you want with 355 pan and 90 up, 45 down tilt.
  • Generous horizontal field of view from 5 to 58.
  • USB 3.0 interface for simple set-up with lots of bandwidth.

HuddleCamHD HC20X-GY-G2 1080p USB Camera Package Contents:

  • 20x Zoom USB 3.0 camera
  • IR remote control
  • 12V/2.0A DC power adapter
  • Installation bracket and screws
  • 3m USB 3.0 data cable
  • Serial control cable
  • RS-232C to RS-485 cable
  • User manual
Expert Analysis
Specifications
Optical Zoom: 20x
Digital Zoom: 12x
Resolution: 1920 x 1080p at 30fps, 1280 x 720p at 30fps
Sensor: 1/2.8” CMOS 2.1 Mega Pixel
Field of View: 5° (tele) to 58° (wide)
Pan Movement: 0-355°
Tilt Rotation: Up: 90°, Down: 45°
Presets: 64
Video Signal: USB 3.0
Control Interfaces: IR, RS-232, & RS-485
Power Input Voltage: 12V DC (10.5-14V DC)
Power Consumption: 24W (Max)
Power Supply: 12V DC 2A adapter
Dimensions (in: 5.68”W x 5.63”H x 5.88”D (7” H w/ Tilt up)
Dimensions (mm: 145mm x 143mm x 150mm (178mm H w/ Tilt up)
Weight: 2.52 lbs (1.14 kg)
Boxed Weight: 5.8 lbs (2.63 kg)
Box Dimensions (in: 13.25”x9.25”x9.5”
Box Dimensions (mm: 337mm x 235mm x 242mm
Compatibility: Windows 7/8/8.1/10/11, Mac OS X, GoToMeeting, Microsoft Teams, Skype, Zoom, and more
Warranty: 2 Years parts and labor
Color: Grey
Power LED Indicator: Blue LED when powered, dark in standby
Standby LED Indicator: Orange LED blinks
NDAA Compliance: Compliant with NDAA 2019, Section 889
Snippet: The HuddleCamHD HC20X-GY-G2 is a 20x USB 3.0 video conferencing camera with 1080p resolution, ideal for medium to large rooms.
