Part Number:
952-000188
Display Side Box Dimensions:
Height: 5.63 in (143 mm), Width: 5.63 in (143 mm), Depth: 1.36 in (34.5 mm)
Table Side Box Dimensions:
Height: 5.63 in (143 mm), Width: 5.63 in (143 mm), Depth: 1.36 in (34.5 mm)
Display Side Ports:
HDMI 2.0 4K60 4:4:4, 2x USB 2.0 Type A, Micro USB
Management Interface:
Logitech Extend
Table Side Ports:
Secured USB-C (from TX to user laptop), USB-C (optional USB-C power supply connection), RJ45 to Display Side (RX)
Mounting:
VESA: 3.94 x 3.94in (100x 100 mm), 2 through-holes for mounting
Power Supply Voltage:
100-240V, 48V, 0.5A
Power Supply Dimensions:
2.89 x 2.09in (73.5 x 53 mm) x 35 mm
DC Cable Length:
5 ft (1.5 m)
USB-C to USB-C Cable Length:
5 ft (1.5 m)
USB A to Micro USB Cable Length:
3.28 ft (1 m)
Operating Temperature:
0° to 40° C
Storage Temperature:
-25° to 70° C
Humidity:
10% to 90%
File Based Encryption:
NIST SHA-256 bits
Data Encryption:
Public Key Hash
Firmware Update:
Digital Signature
Recycled Plastic Content:
Minimum 40% post-consumer recycled material
Packaging Material:
FSC™-certified paper
Warranty:
2-Year Limited Hardware Warranty
Required Display Connection:
HDMI 1.4 or higher
Required AV Device Connection:
USB Type-A 2.0 or higher
Required Laptop Connection:
USB Type-C port with DisplayPort Alt Mode
Compatible Cameras:
Rally Bar, Rally Bar Mini, Rally Bar Huddle, MeetUp, MeetUp 2
Snippet:

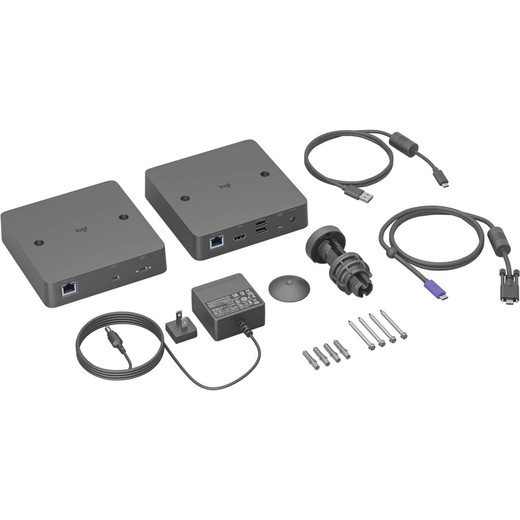

Logitech Extend is a single-cable BYOD connector that enables easy connection of laptops and mobile devices to video conferencing systems and displays via USB-C.
