Part Number:
960-001485
Dimensions:
Width: 21.6 in (549.6 mm), Height: 3.1 in (78.9 mm), Depth: 3.0 in (76.0 mm)
Weight:
3.97 lb (1.8 kg)
Built-in Components:
6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform
Camera Digital Pan:
+/-48° at 4x zoom
Camera Digital Tilt:
+/-32° at 4x zoom
Camera Zoom:
4X HD digital zoom
Camera Diagonal Field of View:
120°
Camera Horizontal Field of View:
113°
Camera Vertical Field of View:
80°
Camera Resolution:
4K
Speaker Driver:
2.2 in(55 mm) with bass reflex enclosure and patented suspension design
Speaker Sensitivity:
83 dB SPL @1W +/-2dB @ 1 meter
Speaker Rated Power:
8W
Microphone Pickup Range:
Up to 23 ft (7m)
Microphone Beamforming Elements:
Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Microphone Noise Suppression:
AI based de-noising algorithm
HDMI Out:
1
HDMI In:
1
USB Ports:
1x Type A USB 3.1, 1x Type C USB 3.1
Network:
10/100/1G Ethernet
WiFi:
802.11a/b/g/n/ac
Bluetooth:
Bluetooth® Low Energy
Power Supply:
Auto-sensing, 100-240V, 19V, 2.1A
Operating Temperature:
0 to 40°C
Snippet:

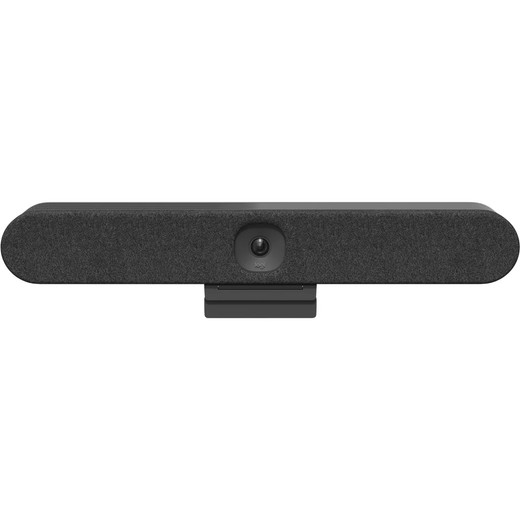

The Logitech Rally Bar Huddle is an all-in-one video conferencing system designed for huddle and small rooms, featuring a 4K camera, AI-driven audio, and multiple deployment options.
