Encryption:
128-bit
Audio Processing:
DFS20 proprietary
Audio Frequency Response:
50 Hz to 14 KHz
US System Capacity (HD Mode:
Up to 16 Wireless Microphones (4 units bussed)
US System Capacity (Max Density Mode:
Up to 32 microphones (8 units bussed)
Software Compatibility:
Room control systems via serial or IP connectivity
Receiver Dimensions (W x D x H:
16.90" (43.03 cm) x 8.00" (20.32 cm) x 1.70" (4.42 cm)
Receiver Weight:
2.90 lb (1.31 kg)
Charger Dimensions (W x D x H:
8.30" (21.10 cm) x 4.30" (10.90 cm) x 1.00" (2.56 cm)
Charger Weight:
1.10 lb (0.49 kg)

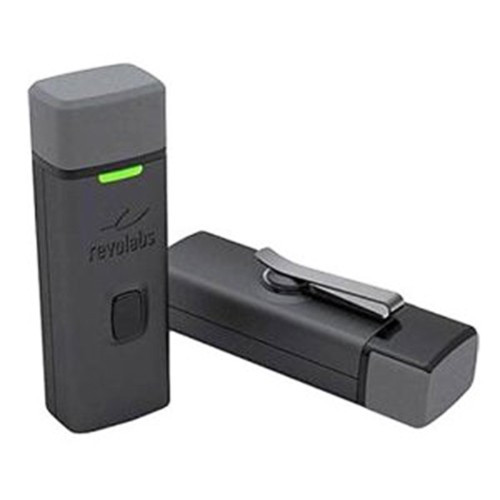

Microphone Model:
01-HDEXEMIC-11
Microphone Dimensions (W x D x H:
1.00" (2.50 cm) x 0.69" (1.75 cm) x 3.90" (10.00 cm)
Microphone Weight:
0.07 lb (0.03 kg)
Microphone Battery Life:
Up to 8 hours per full charge
Wireless Frequency Bands:
1.92 to 1.93GHz (UPCS North America), 1.88 to 1.90GHz (DECT EU), 1.90 to 1.92GHz (DECT CN), 1.895 to 1.903 GHz (DECT JP)
GSM Noise Shielding:
RF-Armor™™™
Microphone Controls:
Single button for power, mute, and pairing
Microphone LED Indicator:
Multicolor for mute, pairing, and connection status
Microphone Analog Output:
2.5 mm unbalanced port
Charger Connectivity:
Proprietary 4 pin microphone charge / communication jack
Charger Power Input:
Mini-USB and DC power input port
Receiver Connectivity:
Ethernet (RJ45), DB9F
Receiver Antenna Connections:
2 x SMA jack (50 ohm)
Receiver Display:
2-line LCD
Receiver Channel Indicators:
4 x LED
Snippet:
The Revolabs HD Wearable Wireless Microphone is a high-definition microphone with 128-bit encryption, offering up to 8 hours of battery life and operating in the 1.92-1.93GHz frequency band.
