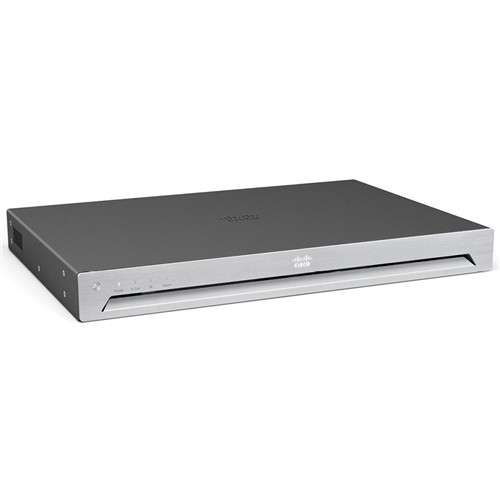

Cisco SX80 TelePresence Codec
Cisco SX80 TelePresence Codec
Cisco SX80 TelePresence Codec - view 2
Product images are provided for reference and may not represent the exact model, configuration, or included components.
Rachel Adams, Senior Specialist

Talk to Rachel

200+ hrs training • U.S - based

Senior Specialist • 888-272-5560

Message Call

Highlights

Video Resolution
Up to 1080p60
Audio Quality
CD-quality 20 kHz stereo
Microphone Inputs
8
Network
Gigabit Ethernet
Power
170W Max
Dimensions
1.7" H x 17.4" W x 12.2" D
Weight
8.05 lbs
Description

Cisco CTS-SX80-K9

The Cisco SX80 video conferencing codec has the following features:

  • Feature-rich codec for diverse deployment and use.
  • Customizable through available integrator packages.
  • Interoperable with existing standards, including H.265 video.
  • Supports four video and eight microphone inputs once.
  • Can also support three video outputs.
  • Rack-mountable, 1U form factor for quick installation.
  • HD video, stereo sound and and expandable design.
  • H.323/SIP point-to-point content sharing up to 10Mbps.

Cisco SX80 Codec Includes:

  • Cisco TelePresence SX80 codec
  • Rack mount ears
  • Power cord
Expert Analysis
Specifications
Video Resolution: Up to 1080p60
Video Codec Support: H.261, H.263, H.263+, H.264, H.265 (SIP only for H.265)
Audio Standards: G.711, G.722, G.722.1, G.728, G.729AB, 64 kbps and 128 kbps MPEG4 AAC-LD mono and stereo, OPUS
Audio Features: CD-quality 20 kHz mono and stereo, Eight separate acoustic echo cancellers, Eight-port audio mixer, Eight assignable equalizers, AGC, Automatic noise reduction, Active lip synchronization
Microphone Inputs: 8 x 48V phantom powered, Euroblock connector
Line Level Audio Inputs: 4 x balanced, Euroblock connector
HDMI Audio Inputs: 3 x digital
Line Level Audio Outputs: 6 x balanced, Euroblock connector
HDMI Audio Outputs: 2 x
Network Interfaces: 1 x LAN/Ethernet (RJ-45) 10/100/1000 Mbit, 2 x LAN/Ethernet (RJ-45) for Cisco peripherals
USB Ports: 2 x USB hosts
Serial Ports: 1 x RS-232
Power Supply: Auto-sensing, 100-120/200-240 VAC, 50/60 Hz
Maximum Power Consumption: 170 watt
Operating Temperature: 0 to 40°C (32 to 104° F)
Storage Temperature: -20° C to 60° C (-4° F to 140° F)
Dimensions (H x W x D: 1.7 in (4.4 cm) x 17.4 in. (44.2 cm) x 12.2 in. (30.98 cm)
Weight: 8.05 lbs. (3.65 kg)
Software Compatibility: TC 7.1 or later, Cisco Collaboration Endpoint Software 8.0 or later
Protocols: H.323, SIP, ISDN (requires Cisco ISDN Link)
Embedded Encryption: H.235 v3, AES
Call Control: Cisco Unified Communications Manager (CUCM), Cisco Video Communication Server (VCS), Cisco Webex, Third-party H.323 Gatekeepers and SIP proxies
IPv6 Support: Dual-stack IPv4 and IPv6
Security Features: HTTPS and SSH management, IP administration password, Menu administration password, Disable IP services, Network settings protection
Certificate Management: CAPF, MIC, LSC, X.509 Digital Certificates (1024, 2048, 4096 key size)
Snippet: The Cisco SX80 Codec is a powerful and flexible audio/video engine for high-definition video collaboration in large meeting rooms, supporting up to 1080p60 video and H.265.
Q&A
Additional info
Icon Loading
Reviews

Customer reviews

No reviews yet — be the first to share how this product worked for your setup.

Write a Review

Product Video
Have Questions?

Cisco SX80 TelePresence Codec - CTS-SX80-K9

$20,016.01
Add to Cart
