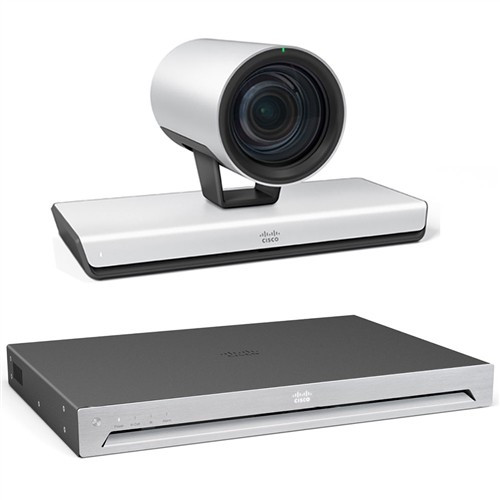

Cisco TelePresence SX80, Precision 60
Cisco TelePresence SX80, Precision 60
Cisco TelePresence SX80, Precision 60 - view 2
Cisco TelePresence SX80, Precision 60 - view 3
Cisco TelePresence SX80, Precision 60 - view 4
Product images are provided for reference and may not represent the exact model, configuration, or included components.
Rachel Adams, Senior Specialist

Talk to Rachel

200+ hrs training • U.S - based

Senior Specialist • 888-272-5560

Message Call

Highlights

Video Output
Up to 1080p60
Audio Quality
CD-quality stereo
Microphone Inputs
8
Video Inputs
3 HDMI, 1 DVI-I
Network
Gigabit Ethernet
Power
170W Max
Dimensions
1.7 x 17.4 x 12.2 in.
Weight
8.05 lbs.
Description

Cisco CTS-SX80-IP60-K9

The Cisco CTS-SX80-IP60-K9 bundle consists of the Cisco SX80 codec, the Cisco Precision 60, camera, and the Touch 10 control. This bundle features the following:

  • High-definition video up to 1080p at 60fps
  • CD-quality audio up to 20 kHz
  • Network protocols include H.323 and SIP
  • Video protocols include H.264 and H.265
  • Supports dual monitors
  • Content sharing up to 1080p at 30fps
  • Offers four video/HD and eight audio-in/microphone connections
  • Included camera features 10x optical/20x total zoom
  • Optional MultiSite license (not included) enables embedded MCU
  • Supports five-way SIP/H.323 conferencing

Cisco SX80 CTS-SX80-IP60-K9 Bundle Package Contents:

  • Cisco SX80 codec
  • Rack ears
  • Codec power cables
  • Presentation cable
  • Precision 60 camera
  • Camera power supply
  • Touch 10
  • Gray Ethernet cable
  • Power injector
Expert Analysis
Specifications
Video Resolution (Encode/Decode: Up to 1080p60
Video Standards: H.261, H.263, H.263+, H.264, H.265 (SIP only)
Audio Standards: G.711, G.722, G.722.1, G.728, G.729AB, MPEG4 AAC-LD, OPUS
Audio Features: CD-quality 20 kHz mono/stereo, 8 acoustic echo cancellers, 8-port audio mixer, AGC, noise reduction, lip sync
Microphone Inputs: 8 (48V phantom powered, Euroblock)
Line Level Audio Inputs: 4 (Euroblock)
HDMI Audio Inputs: 3
Line Level Audio Outputs: 6 (Euroblock)
HDMI Audio Outputs: 2
Video Input Ports: 3 HDMI, 1 DVI-I, 1 Composite/S-Video
Video Output Ports: 2 HDMI, 1 DVI-I
Network Interfaces: 1x 10/100/1000 Ethernet (RJ-45), 2x Ethernet (RJ-45) for peripherals
Protocols: H.323, SIP, ISDN (requires Cisco ISDN Link)
Bandwidth (Point-to-Point: H.323/SIP up to 6 Mbps
Bandwidth (MultiSite: Up to 10 Mbps total
Minimum Bandwidth (720p60: 1152 kbps
Minimum Bandwidth (1080p60: 2560 kbps
Embedded Encryption: H.235 v3, AES
Call Control: CUCM, VCS, Webex, H.323 Gatekeepers, SIP Proxies
Software Compatibility: TC 7.1 or later, Cisco Collaboration Endpoint Software 8.0 or later
Power Supply: Auto-sensing, 100-120/200-240 VAC, 50/60 Hz
Maximum Power Consumption: 170W (codec and main camera)
Operating Temperature: 0 to 40°C (32 to 104°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Dimensions (H x W x D: 1.7 x 17.4 x 12.2 in. (4.4 x 44.2 x 30.98 cm)
Snippet: The Cisco SX80 Codec is a powerful video collaboration engine for large meeting rooms, supporting up to 1080p60 video and offering flexible audio/video connectivity.
