Highlights

Range
65' (20 meters) approx.
Battery Life
up to 8 hours
Audio Bandwidth
100-7000 Hz
Encryption
128-bit DSAA / 64 bit DECT Cipher
Connectors
5VDC, Mini USB, 2.5mm Audio
Operating Temp
40° to 105°F
Description

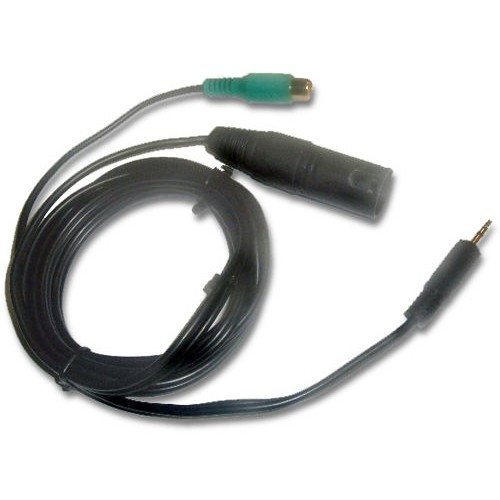

The Revolabs Microphone Converter Cable (07-STEMIC-PPP) is designed to interface Revolabs wireless microphone systems with audio equipment requiring a microphone-level signal. This accessory facilitates the conversion of a line-level signal from a Solo Single Channel Base to a mic-level signal, complete with an XLR connector. It also provides protection by blocking phantom power bias voltages.

This converter cable is specifically designed for use with the Revolabs Solo Single Channel system, which utilizes 1.9 GHz DECT technology for secure and reliable wireless communication. The system offers a range of up to 65 feet (20 meters) without obstructions, features 128-bit DSAA authentication and 64-bit DECT Standard Cipher encryption for enhanced security, and provides up to 8 hours of talk time on a single charge. The cable itself features a 5-pin Mini USB connector for power, a 2.5mm audio input/output, and a proprietary 4-pin connector for microphone power.

Specifications
Power: 5VDC, proprietary 0.7mm connector
Mini USB Connector: 5 pin connector, USB 2.0
Audio In/Out Connector: 2.5mm
Audio Out Level: line level, 0dBV
Audio In Level: line level, 0dBV
Microphone Power: proprietary 4 pin connector
Microphone Audio Connector: 2.5mm mono audio
Microphone Patterns: Executive unidirectional – cardioid
Table Top Microphone Patterns: omni-directional and uni-directional available
Power Adapter Input: 110-240VAC, 50-60Hz
Power Adapter Output: 5VDC, 300mA
Battery Type: Lithium Polymer
Battery Talk Time: up to 8 hours
Charge Time: 2.0 hours approx.
Range: 65' (20 meters) approx. (no obstructions)
Audio Bandwidth: 100-7000 Hz
Encryption: 128-bit DSAA (DECT Standard Authentication Algorithm) authentication, 64 bit DECT Standard Cipher
Operating Temperature: 40° to 105°F (5° to 40° C)
Operating Humidity: 20% to 85%
Snippet: The Revolabs Solo™ Single Channel system is a wireless microphone system featuring 1.9 GHz DECT technology for reliable, secure, and untethered personal communication.
