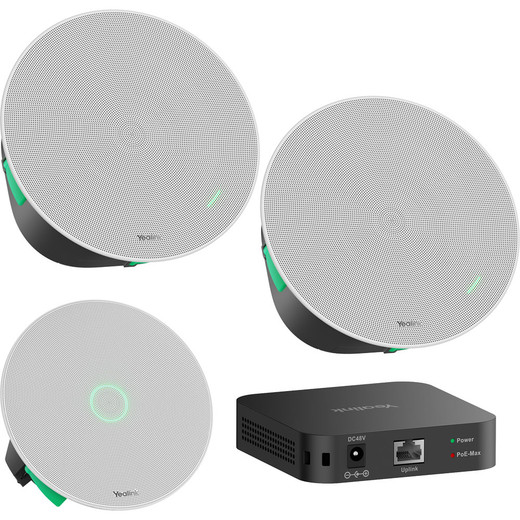

Yealink CMKit-121 is an installed audio solution for medium to large rooms. CMKit-121 consists of 1 ceiling microphone, 2 ceiling speakers, and 1 PoE switch. It provides exceptional audio quality in a clean, professional workspace.

CM20 is a ceiling-mount microphone with a discreet flush-mounted appearance. It uses a beamforming array of 16 microphone elements to pick out voices with an effective range of up to 15' in all directions. It can form 8 beam outputs to track speakers. CM20 has an internal DSP so you don't need to worry about external audio processing. It also features intelligent sound processing to get rid of noises and distractions.

CS10 is a ceiling-mount speaker that is designed specifically for meeting room environments with a low-key appearance. It has a 5.7" woofer and 1.1" tweeter for rich and lifelike audio reproduction, helping everyone in the conference room understand the conversation better. Power CS10 via PoE. The bundle includes 2 CS10's.

RCH40 E2 is a room cable hub for connecting and powering network devices like CM20 and CS10. It is a compact PoE switch that has 4 Gigabit Ethernet ports. It has a total PoE power budget of 90W and can deliver up to 30W per port. It also helps to organize cabling in the meeting room to provide a clean working space for conferences.

Yealink CMKit-121 Features:

• Installed audio solution for medium to large rooms
• Comes with ceiling microphone, 2 ceiling speakers, and 1 PoE switch
• Combine 2 CMKit-121 systems for large to extra-large rooms
• CM20:
• Ceiling-mount microphone with 15' 360° reach
• 16-element beamforming microphone array
• Supports up to 8 beam outputs for precise speaker tracking
• Intelligent sound processing clarifies audio stream
• On-board DSP eliminates need for external sound processing
• CS10:
• Ceiling-mount speaker with 5.7" woofer and 1.1" tweeter
• Hi-fi audio reproduction tuned for meeting room environments
• RCH40 E2:
• PoE switch connects and powers video conferencing devices
• Total PoE power budget of 90W
• Delivers up to 30W to one device
• Gigabit Ethernet ports reduce network bottle-necking

Yealink CMKit-121 Conference Room Audio Solution Includes:

• 1 - Yealink CM20 package
• 2 - Yealink CS10 packages
• 1 - Yealink RCH40 E2 package

Yealink CMKit-121 Resources:

• Yealink CM20 - Datasheet
• Yealink CS10 - Datasheet
• Yealink RCH40 E2 - Datasheet
