Yealink MCoreKit-C5-MS Base Bundle
Yealink MCoreKit-C5-MS Base Bundle
Yealink MCore Pro Mini-PC
Yealink MTouch Plus Touch Controller
Yealink RoomSensor
Product images are provided for reference and may not represent the exact model, configuration, or included components.
Rachel Adams, Senior Specialist

Talk to Rachel

200+ hrs training • U.S - based

Senior Specialist • 888-272-5560

Message Call

Highlights

CPU
Intel i5-1135G7
RAM
8 GB DDR4
Storage
128 GB SSD
MTouch Plus Display
11.6" 1080p Touchscreen
RoomSensor
PIR Motion Detection
Connectivity
Wi-Fi 6, Bluetooth 5.2
OS
Windows 10 IoT Enterprise
Description

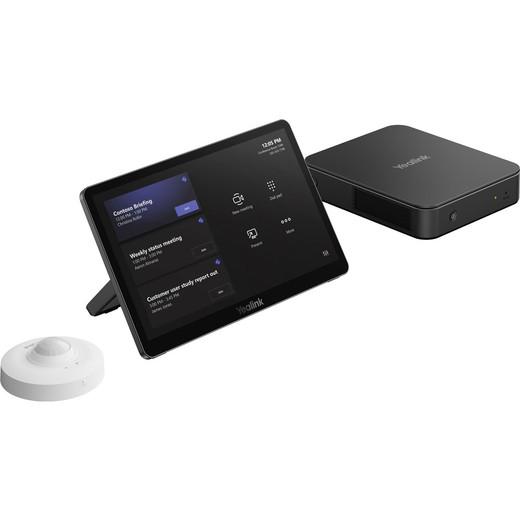

Get a base bundle to streamline the installation of a professional Microsoft Teams video conferencing system in large rooms. Consisting of a powerful mini-PC, large-screen touch controller and passive infrared sensor, Yealink MCoreKit-C5-MS is an elite solution for building the optimal Microsoft Teams meeting room.

Yealink MCore Pro is a dedicated computer for running the Microsoft Teams video conferencing software. Yealink chose the mini-PC's internals for optimal performance while handling video calls, so your team will never have to worry. It comes with the Microsoft Teams Rooms app already installed. Yealink MTouch Plus is a large-screen 11.6" tablet with integrated stand. It acts as an easy-to-use control console for your meeting room, giving users a dedicated interface for scheduling, starting and managing video calls, including adjusting cameras and more. Yealink RoomSensor is a passive infrared sensor (PIR) that enables automatic system wake-up when someone enters the meeting room. With these always-available Microsoft Teams Certified devices, workers will always have a professional video conferencing system when they need to collaborate.

© 2023 Video Conferencing Supply

All rights reserved. This product description or portions thereof may not be reproduced.

Yealink MCoreKit-C5-MS Features:

  • Microsoft Teams Certified video conferencing base bundle
  • Includes mini-PC, touch controller and PIR sensor
  • MCore Pro:
    • Dedicated computer for always-available running of meeting room software
    • Specs chosen for optimal performance when driving Microsoft Teams video conferences
    • Comes with Microsoft Teams Rooms app pre-installed
  • MTouch Plus:
    • Large 11.6" touch controller with integrated stand for managing video conferences
    • Displays familiar Microsoft Teams UI for friction-less experience across devices
    • Schedule, start and manage meetings… and much more
  • RoomSensor:
    • Passive infrared (PIR) sensor
    • Enables convenient system auto-wake

Yealink MCoreKit-C5-MS Microsoft Teams Rooms System Base Bundle Includes:

  • Yealink MCore Pro package
  • Yealink MTouch Plus package
  • Yealink RoomSensor package

Yealink MCoreKit-C5-MS Resources:

Expert Analysis
Specifications
CPU: Intel i5-1135G7 (11th gen)
RAM: 8 GB (2 x 4 GB) DDR4
Storage: 128 GB SSD
Operating System: Windows 10 IoT Enterprise
Microsoft Teams Rooms App: Pre-installed
MTouch Plus Display: 11.6-inch
MTouch Plus Resolution: 1920 x 1080
MTouch Plus Touchscreen Type: Capacitive
MTouch Plus Display Features: Anti-glare and anti-fingerprint
RoomSensor Technology: Passive Infrared (PIR)
RoomSensor Detection Angle: 120°
RoomSensor Coverage (Major Motion: 19.7 ft
RoomSensor Coverage (Minor Motion: 9.8 ft
RoomSensor Bluetooth Range: up to 100 ft
MTouch Plus Physical Connectors: 1x 3.5 mm Headset, 2x USB-A, 2x USB-C, 1x RJ45 (to MCore Pro), 1x Ext Touch Port RJ45
MCore Pro Physical Connectors: 3x HDMI output, 1x RJ45 (MTouch II), 4x USB-A 3.0, 1x Gigabit RJ45 Ethernet, 1x power port, 1x security lock slot
MTouch Plus Adjustable Bracket Angle: 30° to 70°
Package Contents: Yealink MTouch Plus, Yealink MCore Pro Mini-PC, Yealink RoomSensor, Mounting brackets, Cables, Power adapter, Screws, Stickers, Quick Start Guide
Snippet: Yealink MCoreKit-C5-MS is a Microsoft Teams Rooms system base bundle featuring an Intel i5 Mini-PC, 11.6" touchscreen, and room sensor for large conference rooms.
